Showing all 4 results

  • Pneumatic High Pressure Ball Valve

    Pneumatic High Pressure Ball Valve Diameter DN25~DN300 Pressure 1.0Mpa,1.6Mpa,4.0Mpa,6.4Mpa Connection Flange Connection Threaded Connection Temperature PTFE:-30~+180°C PPL:-30~+250°C Pneumatic actuator Single acting Double acting pneumatic accessories Limit switch, positioner, solenoid valve,Filtering pressure reducing valve, the handwheel Medium Water,fluid,gas,steam,etc Seat Material PTFE,PPL Body Material WCB,304,316,316L Padding politef,graphite Application widely used in Power station,Chemical,Petrol,Contruction,Pipe, Paper Industry Standard Design and Manufacturer:ANSI B16.34, API 608 Face to Face Length:,ASME B16.10, JIS B2002 Flange Dimensions:,ASME B16.5,JIS B2212/JIS B2214 Test and Inspection:T13927 Flammability test:API 607 4th 1993 Wall Thickness:ASME B16.34 Material: No. Part Material 1 Screw SS304 2 Connector CF8, CF8M, CF3, CF3M 3 Seat PTFE, Nylon, PPL, Hard Alloy 4 Ball […]

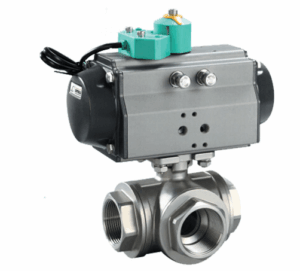

  • Pneumatic Three Way Ball Valve

    Pneumatic Three Way Ball Valve Nominal size:DN15-DN50mm Body material: 304, 316,316L Connection type: Thread Pressure class: PN1.6-6.3MPa Structure type: Floating ball core 3 way T type, 3 way L type Valve components Seat sealing: PTFE:-30℃~180℃ PPL :-30℃~250℃ Core material: 304, 316,316L Hard seal core surface spray welding, tungsten nitride treatment. Stem material: 304 Applicable medium: Water, liquids, gas, oil, powder, steam, acid and alkali corrosive medium Performance Fire protection structure design ISO5211 standard can direct mounting actuators Between the core and the valve body antistatic device Stem explosion proof design Double stem packing conforms to the German TUV TA – being LUFL stem leakage test Double butterfly shrapnel automatic compression packing design Allowable pressure differential: Less than nominal pressure 1.6MPa Leakage: Zero leakage Hysteresis:±2.5% Pneumatic actuator Double acting: Air to open, air to close, air supply failure to keep the current position Single acting air to open type: Air to open, interrupt air to close, air failure to close Single acting air to close: Air to close, interrupt air to open, air failure to open Optional accessory: Reversing solenoid valve, limit switch box, air filter reducing valve, positioner, handle manual, lock up valve Electrical part can be chose explosion-proof type Dimension: DN inch Thread 3 Way Actuator d L H A […]

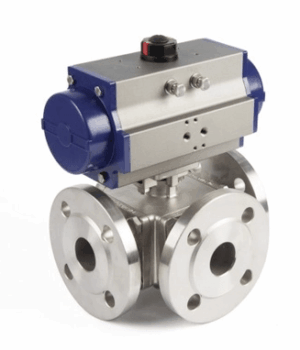

  • Pneumatic Three Way Flanged Ball Valve

    Pneumatic Three Way Flanged Ball Valve Product Name Pneumatic Three Way Flanged Ball Valve 1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. 2. Size 1/2~10 inch (DN15~DN250) 3. Connection ends Flange 4. Port Reduce Port 5. Working Pressure 150LB~300LB 8. Working Temp. -20~300ºC, or according to customer requirements for different industry. 9. Suitable Medium Water, Natural […]

  • Pneumatic Three Way Heavy Duty Ball Valve

    Pneumatic Three Way Heavy Duty Ball Valve Port Size Full Bore, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ DN15 , DN20 , DN25 , DN32 , DN40 , DN50 Media Oil, Acid, Gas, Water, Chemical, Petrochemical, Pulp, LPG, CNG Tempurature of Media -20 to 250 degrees Celsius Material Carbon steel or Stainless Steel or Special Alloy Steel […]
