Safety Valve Supplier in USA
Boilers, pressure vessels, pipelines, compressors, and other pressurized equipment are protected by safety valves when operational pressure exceeds a safe level. During normal operation, the valve remains closed, but it opens automatically at the calibrated set pressure to discharge steam, gas, vapour, or liquid.
For enterprises looking for a safety valve supplier in USA, Valves Only provides pressure-protection valves that are selected based on the medium, set pressure, relieving capacity, temperature, backpressure, connection, and applicable code. Correct sizing is important because the valve should manage the greatest credible fault flow rather than just matching the pipeline diameter.
How Does a Safety Valve Protect the System?
System pressure acts beneath the valve disc while an adjusted spring holds the disc against the nozzle seat. When the inlet pressure reaches the set point, the pressure force overcomes the spring load and lifts the disc. Excess medium is discharged until the pressure falls sufficiently for the valve to reseat.
Important operating terms include:
Set pressure: The inlet pressure at which the valve begins to open.
Overpressure: The pressure increases above set pressure needed to achieve rated lift and capacity.
Relieving capacity: The certified amount of fluid the valve can discharge under specified conditions.
Blowdown: The difference between opening pressure and reseating pressure.
Backpressure: Outlet pressure that may affect opening, discharge capacity, or reseating.
The inlet connection should be direct and unrestricted. Discharge piping must safely carry the released medium without creating excessive backpressure.
Safety Valves Designs Available
- Full-Lift Pressure Safety Valve
A full-lift valve raises the disc far enough that the bore or nozzle area controls the discharge capacity rather than disc travel.

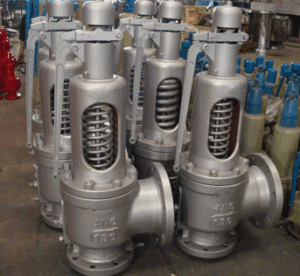

- Low-Lift Pressure Safety Valve
In a low-lift design, the disc position continues to limit the available discharge area. Its controlled lift is suited to lower-capacity pressure relief duties where the required fault flow can be safely discharged through a smaller opening.
- Steam Safety Valve
A steam safety valve is designed for boilers, steam headers, heat-recovery equipment, and other pressurized steam systems. equipment from exceeding its allowable accumulated pressure.
Technical Specifications
Availability varies by valve model, pressure duty, and operating medium.
Technical Parameter | Available Options |
Inlet and Outlet Size | ½ × ½ inch to 12 × 14 inches, depending on model |
Pressure Rating | PN16 to PN40; Class 150 to Class 300 |
Body Materials | Cast iron, ductile iron, WCB, SS304, and SS316 |
Nozzle and Disc | SS304, SS316, or 2Cr13, depending on model |
End Connections | Threaded NPT or flanged with RF or RTJ facing |
Service Media | Steam, gas, vapour, water, and compatible liquids |
Design and Sizing | API 520, API 521, and API 526 |
Seat Tightness and Testing | API 527 and ASME PTC 25.3, as specified |
Final size, discharge orifice, body material, set pressure, relieving capacity, seat design, and connection must be confirmed against the protected equipment and governing project code.
Industries That Use Safety Valves
Oil and gas: Protect separators, storage vessels, compressors, gas lines, and processing equipment.
Refining and petrochemical: Relieve excess pressure from reactors, columns, heat exchangers, and hydrocarbon systems.
Power generation: Safeguard boilers, steam drums, superheaters, and steam headers.
Chemical processing: Protect pressurized vessels and pipelines carrying corrosive or reactive media.
Water and utilities: Used on pumping systems, pressure vessels, compressed-air lines, and utility equipment.
Marine and offshore: Applied to boilers, fuel systems, pressure vessels, and offshore process units.
Safety Valve Sizing, Set Pressure and Selection
Valves Only sells full-lift, low-lift, and steam safety valves in a variety of body materials, pressure ratings, input and outlet sizes, and connection configurations.
Customers can share information about their protected equipment, working medium, pressure, set pressure, temperature, needed relieving capacity, backpressure, quantity, and documentation needs. The team can then recommend an appropriate pressure safety valve arrangement and provide a technical and commercial quote.
