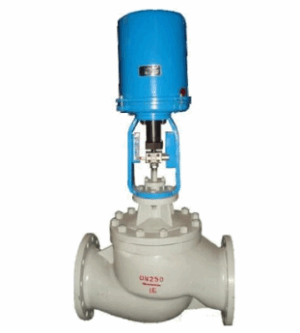

Electric Control Valve
Electric Control Valve Supplier in USA, Valves Only supplies motorized valves for applications where smooth, consistent, and electrically driven flow control is essential. These valves are preferred in systems where air supply is not available or where operators want direct integration with plant electrical networks. Whether used in feedwater loops, refinery heater lines, cooling circuits, or chemical dosing systems, electric control valves help maintain stable flow without frequent adjustments, making day-to-day operation easier and more predictable.
How Electric Control Valves Work
An electric control valve pairs a valve body with a motorized actuator that positions the stem or plug based on a control signal. The actuator receives an input typically 4–20 mA or 0–10 V—from the site’s control system and adjusts torque output to move the valve smoothly to the required position. This precise positioning allows the valve to respond steadily to changes in load or line pressure. Because the unit is fully electric, it avoids the complexity of compressors and air handling equipment, which is useful in enclosed areas, remote stations, or locations with limited utilities.
Benefits
- Maintains stable flow control even when line pressures fluctuate
- Quiet operation with balanced trim and controlled stem travel
- Motor-driven actuation delivers repeatable positioning accuracy
- Straightforward installation where pneumatic lines are not available
- Lower long-term maintenance due to fewer supporting components
- Compatible with position transmitters and limit feedback switches
Design Standards
- Valve Design: IEC 60534, ASME B16.34, ANSI/ISA 75.05.01
- End Connections: ASME B16.5, ASME B16.10
- Pressure Ratings: ASME Class 150–2500
- Testing & Inspection: API 598, ANSI/FCI 70-2
Inspection & Testing Standards
- API 598 – Hydrostatic and seat leakage testing
- ANSI/FCI 70-2 – Control valve leakage classification
- ISO 5208 – Pressure and leakage verification
- EN 12266-1 – Strength and tightness testing
Body & Trim Material Compatibility
| Category | Material / Grade | Standards / Specifications | Typical Applications |
|---|---|---|---|
| Carbon Steel | WCB, LCC | ASTM A216 / ASTM A352 | General water, steam, and oil control service |
| Stainless Steel | CF8, CF8M, CF3, CF3M | ASTM A351 | Chemical, refinery, and clean process service |
| Duplex Steel | F51 (2205) | ASTM A182 | Chloride-rich water and offshore systems |
| Super Duplex | F55 (2507) | ASTM A182 / ASTM A890 | High-pressure seawater and brine control |
| F44 (254 SMO) | UNS S31254 | ASTM A182 | High-chloride, high-temperature chemical flows |
| Alloy 20 | CN7M | ASTM B462 | Strong acids and corrosive chemical lines |
| Hastelloy | C22, C276 | ASTM B574 / ASTM B564 | Aggressive chemical and gas control |
| Inconel | 625, 718 | ASTM B446 / ASTM B564 | High-temperature and high-pressure duties |
Material selection depends on media composition, temperature range, and pressure class to ensure long-term reliability.
Industries Served
- Power Generation – Feedwater, steam conditioning, auxiliary loops
- Oil & Gas – Separator level control, heater and dehydration units
- Chemical & Petrochemical – Reactor feeds and distillation columns
- Water & Wastewater Treatment – Filtration and pressure management
- Marine & Offshore – Electric actuated valves for seawater service
- Steel & Mining – Cooling and gas flow regulation
- Desalination Plants – Brine and RO feed control
- Pulp & Paper – Bleaching and washing circuits
Special Features
- Compact motorized actuator with manual override
- Compatible with 4–20 mA, 0–10 V, and other control signals
- Torque-controlled operation for accurate modulation
- Low-noise trim options for high differential pressure duties
- Available in Class 150 to Class 2500
- Customisation available in body materials, trim options, actuator type, and fail-safe setup
