Electric Actuated Valve

Valvesonly is a reputed Electric Actuated valve manufacturer in USA. An Electric Actuated Valve is a sophisticated control device used in industrial processes and fluid handling systems to regulate the flow of liquids or gases. It consists of a valve body, which can be of various types such as ball, butterfly, or globe, and an electric actuator that drives the valve’s opening and closing mechanism. The actuator is powered by electricity and serves as the driving force to position the valve according to the desired setpoint. The actuator typically contains a motor, gears, and a positioner, allowing precise control over the valve’s position.

The working principle involves the electric actuator receiving signals from a control system, which instructs it to move the valve to a specific position. The actuator then converts electrical energy into mechanical motion, causing the valve to either open or close. The positioner ensures accurate positioning by providing feedback to the control system. Electric Actuated Valves offer advantages such as rapid response, remote operation, and the ability to integrate into automated systems, making them essential components in industries ranging from oil and gas to water treatment and chemical processing. Visually, an Electric Actuated Valve typically consists of a robust valve body connected to a compact and often weather-resistant actuator housing, showcasing the marriage of mechanical and electrical components for efficient flow control.

Types:

  • Electric Actuated Butterfly Valve
  • Electric Actuated Gate Valve
  • Electric Actuated Ball Valve
  • Electric Actuated Globe Valve

Advantages:

  • Electric Actuated Valves provide precise control over the valve position, allowing for accurate regulation of fluid flow.
  • They can be easily integrated into automated systems, allowing for remote operation and control.
  • Electric actuators offer quick response times, enabling fast adjustments to changing process conditions
  • Many electric actuators are equipped with feedback mechanisms or positioners that provide real-time information about the valve’s position.
  • Electric actuators consume power only when in operation, reducing energy consumption.
  • Electric actuators are versatile and can be used with different types of valves.
  • Electric Actuated Valves often require less maintenance compared to other types of actuators.
  • They are generally cleaner and more environmentally friendly than fluid-based actuators (hydraulic or pneumatic) because they do not involve the use of fluids that may be prone to leakage or contamination.

Industries:

  • Oil and Gas
  • Chemical Processing
  • Water and Wastewater Treatment
  • Power Generation
  • Pulp and Paper
  • Mining and Minerals
  • Automotive
  • Aerospace
  • Marine
  • Semiconductor
  • Renewable Energy (Solar, Wind)
  • Steel and Metal Processing
  • Petrochemical
  • Construction

Description:

  • Available materials: CF8M, CF8, SS316, CF3M, SS304, WCB, WCC, LCB, LCC, WC6, cast iron, ductile iron
  • Size: 2″ – 48″ or DN50 – DN1200
  • Class: 150
  • Nominal Pressure: PN10 to PN16
  • End: Connection Flanged, Buttweld, Threaded, Lug, Wafer.
  • Operation: Electric Actuated
  • Torque Range-10nm – 30000nm
  • Voltages-220, 230, 240, 380, 400, 440, Frequency {50, 60 Hz}



Showing 1–10 of 13 results

  • Sale!
    $135.00

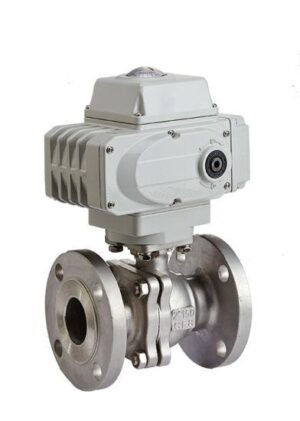

    Electric Actuated 2 Piece Flanged Ball Valve

    Electric Actuated 2 Piece Flanged Ball Valve Body Material: Carbon Steel, CF8M Ball Material: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN200 Nominal Pressure: PN1.0MPa to PN6.4MPa End Connections: Flanged Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V AC, […]

  • Sale!
    $94.00

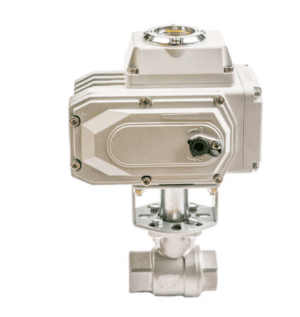

    Electric Actuated 2 Piece Screwed Ball Valve

    Electric Actuated 2 Piece Screwed Ball Valve Body Material: Carbon Steel, CF8M Ball Material: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN200 Nominal Pressure: 1000PSI End Connections: Screwed, Threaded Or Welded, Buttweld Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: […]

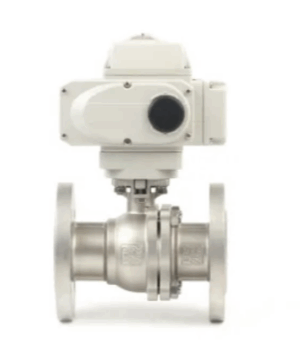

  • Electric Actuated Floating Forged Ball Valve

    Electric Actuated Floating Forged Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC […]

  • $154.00

    Electric Actuated Gate Valve

    ELECTRIC ACTUATED GATE VALVE Size: DN40 to  DN700 Pressure: PN10 to PN150, Class150 to Class900 Body Material: Cast Iron, Ductile Iron,  Carbon Steel, Stainless Steel Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M Plug: A105,SS304, SS316, SS304L, SS316L Seat, Seat Ring: PTFE Packing: Graphite Flanged Ends to ASME B16.5 Socket Weld Ends to ASME […]

  • $190.00

    Electric Actuated Globe Valve

    ELECTRIC ACTUATED GLOBE VALVE Size: DN40 to  DN700 Pressure: PN10 to PN150, Class150 to Class900 Body Material: Cast Iron, Ductile Iron,  Carbon Steel, Stainless Steel Bonnet: Carbon Steel, Ductile Iron, SS304, SS316, CF3, CF3M Plug: A105,SS304, SS316, SS304L, SS316L Seat, Seat Ring: PTFE Packing: Graphite Flanged Ends to ASME B16.5 Socket Weld Ends to ASME […]

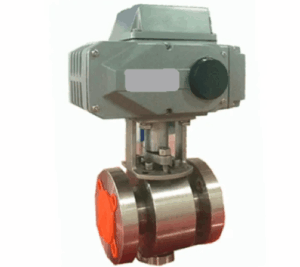

  • Electric Actuated High Pressure Ball Valve

    Electric Actuated High Pressure Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC […]

  • Electric Actuated High Pressure Direct Mounting Ball Valve

    Electric Actuated High Pressure Direct Mounting Ball Valves Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V […]

  • Sale!
    $115.20

    Electric Actuated Lug Butterfly Valve

    Electric Actuated Lug Butterfly Valve Body: Ductile Iron, SS304, SS316, WCB Disc: SS316, SS304, Ductile Iron Seal: EPDM, PTFE, NBR, VITON End Connection: Lug Type Nominal Size: DN50 to DN800 Nominal Pressure: PN10, PN16 PN25, Class150 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC […]

  • Electric Actuated Metal-Seated Trunnion-Mounted Forged Ball Valve

    Electric Actuated Metal-Seated Trunnion-Mounted Forged Ball Valve Body: Carbon Steel, CF8M, CF8M Bonnet: Carbon Steel, CF8M, CF8M Ball: CF8, CF8M Seat: PTFE Packing: PTFE Nominal Diameter: DN15 to DN250 Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300 Actuation Type: Electric Actuated Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, […]

  • Sale!
    $130.00

    Electric Actuated Three Piece Ball Valve

    Electric Actuated Three Piece Ball Valve Body Material: Carbon Steel, CF8M Ball Material: Stainless Steel Seat: PTFE, RTFE, PPL Nominal Diameter: DN15 to DN200 Nominal Pressure: 1000PSI End Connections: Screwed, Threaded Or Welded, Buttweld Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V Power Supply: 24V […]
