Showing all 4 results

  • Sale!
    $1,030.00

    Direct Acting Pressure Reducing Valve

    Direct Acting Pressure Reducing Valve Approvals, Features & Benefits WRAS listed materials Face to face to EN558-1 Series 1 Direct acting Self cleaning piston Economical & efficient Ports for optional pressure gauges Pressure & Temperature Upstream Pressure range:- 16 bar (40 bar option on request) Downstream Pressure range:- 1.5 to 6 bar (5 to 24 […]

  • Sale!
    $513.00

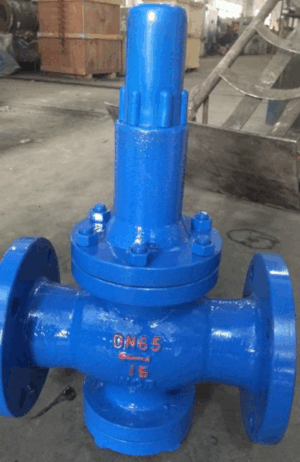

    Flanged Steam Pressure Reducing Valve

    Flanged Steam Pressure Reducing Valve Key Specifications Nominal Pressure: 2.5 MPa. Casing Body Test Pressure: 3.75 MPa. Sealing Test Presure: 2.5 MPa. Max. nlet presure: 2.5 MPa. Outlet pressure range: 0.02 – 1.6 MPa. Parts & Material Body:Ductile Iron Seat: 410 S.S. Plug: 410 S.S. Diaphragm: 321 S.S. Adjustable Spring: UNS G92600. Flow Factor(Cv): DN: […]

  • Sale!
    $159.00

    Screwed Steam Pressure Reducing Valve

    Screwed Steam Pressure Reducing Valve Key Specifications Nominal Pressure: 2.5 MPa. Casing Body Test Pressure: 3.75 MPa. Sealing Test Presure: 2.5 MPa. Max. nlet presure: 2.5 MPa. Outlet pressure range: 0.02 – 1.6 MPa. Flow Factor(Cv) DN: 15, 20, 25, 32, 40, 50. Cv: 2.9, 5.3, 8.6, 11.6, 16.5, 29.1. Parts & Material Body, Bonnet: […]

  • Sale!
    $348.00

    Water Pressure Reducing Valve

    Water Pressure Reducing Valve Field of Application. Pressure Rating: 1.0- 6.4Mpa Nominal Diameter: DN20-400 Body Material: Steel, CF8 Standard flanges: DIN, ANSI, JIS. Main Technical Parameters and Indexes of Performance. Nominal pressure PN1.6Mpa PN2.5Mpa PN4.0Mpa PN6.4Mpa Tested pressure of shell 2.4Mpa 3.75Mpa 6.0Mpa 9.6Mpa Sealing test pressure 1.6Mpa 2.5Mpa 4.0Mpa 6.4Mpa Maximum upstream pressure 1.6Mpa 2.5Mpa 4.0Mpa 6.4Mpa Pressure range of outlet 0.2-1.0Mpa 0.2-1.6Mpa […]
