Control Valve

Valvesonly is the leading Control valve manufacturer in USA. A control valve is an important part in industrial processes that is designed to regulate the flow of fluid (such as liquids, gases, or steam) through a pipeline. It plays a key role in maintaining the desired process conditions by adjusting the flow rate based on signals from a control system. The physical appearance of a control valve typically consists of a valve body, actuator, and a positioner. The valve body is the main housing that contains the mechanism responsible for controlling the flow. The actuator is the component that receives signals from the control system and translates them into mechanical movement to adjust the valve’s position. The positioner fine-tunes the valve’s position based on feedback, ensuring precise control.

The working principle of a control valve involves responding to signals from a process control system. When the system detects a deviation from the desired setpoint, it sends a signal to the control valve actuator, instructing it to either open or close the valve. This action alters the flow of the fluid, thus influencing the process parameters.

Types:

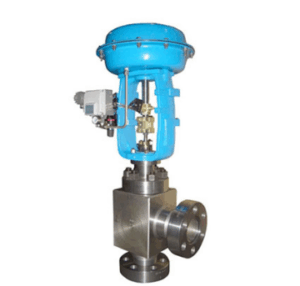

  • Pneumatic Angle Seat Control Valve
  • Type shutoff control valve
  • Globe Control valve

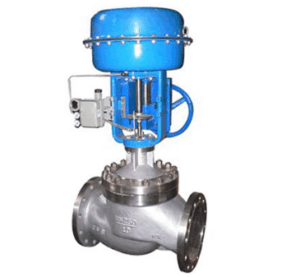

  • Cage type control valve
  • Single Seat control valve

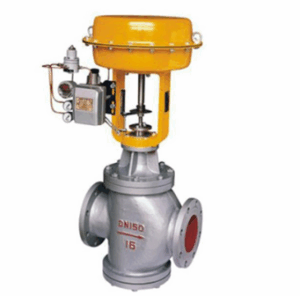

  • Double seat control valve
  • Three-way control valve
  • Water Control valve

Advantages:

  • Flow regulation
  • Pressure regulation
  • Temperature control
  • Energy efficiency
  • Process stability
  • Safety enhancement
  • Flexibility in operation
  • Remote control and automation
  • Reduced maintenance downtime
  • Improved product quality
  • Compliance with regulations

Industries:

  • Nuclear Power
  • Oil and Gas
  • Power Generation
  • Manufacturing and Process Industries
  • Mining and Minerals Processing
  • Water Treatment and Distribution
  • Pulp and Paper
  • Refining
  • Marine
  • Renewable Energy
  • Chemical and Petrochemical
  • Steel and Metal Processing

Description:

  • Available Materials: Ductile Iron, Cast iron (WCB, WCC, WC6) LCC, LCB, Stainless Steel (SS316, SS304), Super Duplex (F51, F53, F55)
  • Class: 150 to 2500
  • Nominal Pressure: PN10 to PN450
  • Medium: Air, Water, Chemical, Steam, Oil
  • Operations: Electro Pneumatic Operated and Pneumatic Operated.
  • Size: 1/2”- 24”
  • Ends: Flanged, butt weld, socket weld, threaded

Electric actuator details:

  • Torque – 3 – 9 nm
  • Operating pressure- 8 Bar
  • Port Connection-NPT1.4”
  • Mounting Base-ISO5211
  • Temperature–20°C – +80°C

Configuration of a Pneumatic Actuator:

  • 4-20 amp
  • Pneumatic single acting actuators
  • Pneumatic double acting actuators
  • Pneumatic rotary actuators
  • Pneumatic Scotch and Yoke actuators
  • Pressure: 228 bar

Temperature:

  • Standard -4°F to 200°F (-20°C to 93°C)
  • Low -40°F to 176°F (-40°C to 80°C)
  • High 0°F to 300°F (-18°C to 149°C)

Showing 1–10 of 20 results

  • 2 way Cooling Type Control Valve

    Product Details:

    Minimum Order Quantity 50 Piece
    Media Air, Water, Gas, Fuel, Powder/Solids
    I deal in New Only
    Brand SVR
    Type Pneumatic
    Valve Size 1/2″ to 12″
    Material Stainless Steel
    Condition New
    Type Flow Control Valve
  • Sale!
    $1,054.00

    3 Way Converging and Diverging Control Valve

    3 Way Converging and Diverging Control Valve Body: WCB, WC6, CF8, CF8M Bonnet: WCB, WC6, CF8, CF8M Seat: SS304, SS316, Stellite Plug Metal Sealing: SS304, SS316, Stellite Plug Soft Sealing: SS304, SS316, Stellite Cage: SS304, SS316 Guide Sleeve: SS304, SS316 Stem: SS304, SS316 Balanced Piston: Steel, Aluminium Balanced Piston Ring: Fluorine Ring, SS+Reinforced PTFE, Flexible […]

  • Sale!
    $1,539.00

    3 Way Pneumatic Diaphragm Control Valve

    3 Way Pneumatic Diaphragm Control Valve Nominal Size: DN20 to DN200 Nominal Pressure: PN16 to PN64, Class 150 to Class 600 Body: WCB, WCC, WC6, CF8, CF8M, CF3, CF3M Bonnet: WCB, WCC, WC6, CF8, CF8M, CF3, CF3M Seat: SS304, SS316, SS316L End Connection: Flanged, RF, MF, RTJ Welding: Socketweld, Buttweld Packing: PTFE, Graphite Gasket: Metal […]

  • Sale!
    $2,138.00

    Electric 3 Way Control Valve

    Electric 3 Way Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: […]

  • Sale!
    $939.50

    Electric Actuated Globe Control Valve

    Electric Actuated Globe Control Valve Body: WCB, LCB, SS304, SS316, SS316L Bonnet: WCB, LCB, SS304, SS316, SS316L Lining Material: PO, PE, PP F46, F4, PFA Bellows Material: PTFE, PFA Stem Material: 17-4PH ASTM A276 304 Nominal Diameter: DN25 to DN300 Nominal Pressure: PN16, PN25, PN40, PN64, Class150, Class 300 Input Signal: 4-20mADC, 1-5VDC Power Supply: […]

  • Sale!
    $1,655.00

    Electric Cage Type Control Valve

    Electric Cage Type Control Valve Body: WCB, WCC, WC6, CF8, CF8M, CF3, CFM Bonnet: WCB, WCC, WC6, CF8, CF8M, CF3, CFM Plug: SS304, SS316, SS316L Seat: SS304, SS316, SS316L Packing: PTFE, RPTFE, Graphite Sealing Ring: PTFE Stem: SS304,SS316, SS316L Technical Specifications Nominal Diameter 25 32 40 50 65 80 100 125 150 200 250 300 […]

  • Sale!
    $1,365.00

    Electric Double Seat Control Valve

    Electric Double Seat Control Valve Body: WCB, WCC, WC6, CF8, CF8M, CF3, CF3M Bonnet: WCB, WCC, WC6, CF8, CF8M, CF3, CF3M Plug: SS304, SS316, SS316L Seat: SS304, SS316, SS316L Packing: PTFE, Graphite Sealing Ring: PTFE Stem: SS304, SS316, SS316L Technical Specifications Nominal Diameter 25 32 40 50 65 80 100 125 150 200 250 300 […]

  • Sale!
    $2,338.00

    Electric O-type Shut-off Control Valve

    Electric O-type Shut-off Control Valve Body: WCB, WCC, WC6, CF8, CF8M, CF3, CFM Bonnet: WCB, WCC, WC6, CF8, CF8M, CF3, CFM Plug: SS304, SS316, SS316L Seat: SS304, SS316, SS316L Packing: PTFE, RPTFE, Graphite Sealing Ring: PTFE Stem: SS304,SS316, SS316L Nominal Size: DN15 to DN300 Nominal Pressure: PN 1.6 to PN 6.4 Input Signal: 1.5 to […]

  • Sale!
    $1,265.00

    Electric Single Seat Control Valve

    Electric Single Seat Control Valve Body: WCB, WCC, WC6, CF8, CF8M, CF3M Bonnet: WCB, WCC, WC6, CF8, CF8M, CF3M Seat: SS304, SS316, SS316L Packing: PTFE, Flexible Graphite Bellows: SS304, SS316, SS316L Stem: SS304, SS316, SS316L Nominal Size: DN20 to DN200 Nominal Pressure: PN16, PN25, PN64 Voltage: AC220V, 50HZ Input Signal: DC4 to 20mA, 0 to […]

  • Feed Water Control Valve

    Feed Water Control Valve Body : A105 Bonnet : A105 Stem : SS304 , 20Cr13 Disc : SS304 , 20Cr13 Seat : SS304 , 20Cr13 Sleeve : SS304 Dimensions PN(Mpa) DN(mm) L H L1 L2 D1 D2 Electric Actuator Electric 10 20 460 870 118 160 28 20 10M 10 32 530 950 136 163 […]
