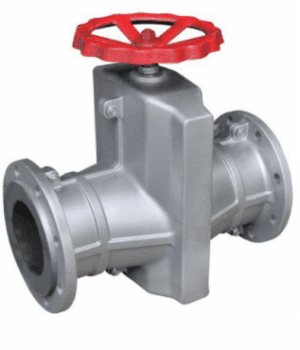

Pinch Valve Supplier in USA

As a Pinch Valve Supplier in USA, we provide engineered valves for demanding slurry and solids service. Each valve controls flow by compressing a reinforced elastomer sleeve. When open, the path remains full bore for smooth throughput. When closed, the sleeve delivers bubble tight shutoff even with abrasive or fibrous media. Because only the sleeve contacts the fluid, metal parts stay out of the stream, clogging is less likely, and maintenance is largely a sleeve replacement.

How Pinch Valves Work

A flexible sleeve sits inside a body. An actuator squeezes the sleeve to throttle or shut the line, then releases it to reopen. Since the sleeve is the only wetted part, the valve handles solids, scale, and fibers without jamming and seals tightly even when particles are present.

Benefits

• Full bore opening for low pressure loss.
• Bubble tight shutoff on slurry and fibrous media.
• No cavities or seats to plug; sleeve is the only wetted part.
• Fast upkeep — sleeve changeout is straightforward.
• Suitable for throttling or on/off duty with long cycle life.
• Quiet operation with low vibration.

Types of Pinch Valves

• Electric Actuated Pinch Valve — motor driven control for precise positioning and remote operation where plant air is not available.
• Pneumatic Pinch Valve — air operated for quick response and simple fail safe setups (air to open or air to close).

Industries Served

• Mining & Minerals — tailings, thickener underflow, lime slurry, and reagent lines.
• Water & Wastewater — sludge, grit, scum, polymer, and abrasive dosing streams.
• Chemical & Petrochemical — corrosive or crystallizing slurries and powders in suspension.
• Power Generation — fly ash handling, FGD slurries, and utility drains.
• Desalination — intake screening backwash and brine or slurry side streams.
• Marine & Offshore — seawater with sand or shells; utility lines with suspended solids.
• Pulp & Paper — stock, fillers, and coating slurries.

Material Selection for Pinch Valves

Technical Specifications

• Design: full port flexible sleeve with straight through flow path.
• Size range: DN15 to DN1200 (½″ to 48″) depending on body style.
• Pressure ratings: typically PN10 to PN16; higher with reinforced sleeves.
• Temperature range: about −40 °C to +200 °C depending on elastomer.
• End connections: flanged (ASME B16.5 / EN 1092), threaded NPT/BSP on small sizes, grooved ends on request.
• Control options: on/off or modulating with electric or pneumatic actuators and position feedback.
• Service notes: tolerant of high solids; suited to abrasive, fibrous, and scaling media.

Inspection & Testing

• Hydrostatic shell and seat tests per ISO 5208 / MSS SP-61.
• Functional cycling and closure leak checks on assembled valves.
• Sleeve integrity and thickness verification before shipment.
• Coating dry film thickness and holiday testing where specified.
• Material traceability to EN 10204 3.1 available on request.

Special Features

• Straight through bore minimizes clogging and pressure loss.
• Replaceable sleeves matched to media, temperature, and abrasion.
• Optional wear liners and flush ports for severe slurry duty.
• Position feedback, limit switches, and fail safe options for automation.
• Custom options for body materials, sleeves, end connections, and actuation to suit the application.
