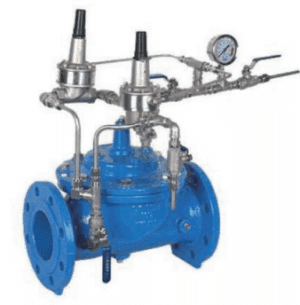

Surge Anticipator Valve Supplier in USA
Surge control is addressed before pipe thickness is finalised. Once the system layout is fixed, the ability to manage pressure transients depends entirely on the surge control devices selected at the design stage.
Surge Anticipator Valve Supplier in USA selections are made to ensure that the valve becomes an integral part of the hydraulic design, not a corrective device added after commissioning.
Role of Surge Anticipator Valves in Pumping Systems
Surge anticipator valves are installed near pump discharge headers and critical pipeline sections where sudden pressure rise can occur during pump trips, shutdowns, or rapid flow changes. Their primary function is to open quickly and discharge excess pressure to a relief line, reservoir, or drain path before surge loads propagate through the system.
In these installations, the valve supports stable pipeline operation by limiting peak pressures at the source and reducing stress on joints, fittings, and downstream equipment.
How Surge Anticipator Valves Protect the Pipeline
When flow decelerates abruptly, a surge wave develops near the pump discharge and travels through the line. If the surge is not relieved early, the pressure wave can reflect within the network and increase mechanical loading at weak points.
In service, surge anticipator valves are expected to manage:
- Fast opening during sudden pressure rise
- Discharge of excess flow during surge events
- Controlled closing after pressure stabilisation
- Repeatable operation over multiple surge cycles
- Stable pilot response without hunting
Pilot sensitivity, sensing location, opening speed, and discharge capacity directly influence how effectively peak pressures are limited.
Why Surge Anticipator Valve Selection Is Critical
Incorrect selection or poor adjustment can leave the system exposed to surge loads that exceed design limits. Typical consequences include:
- Pipe rupture due to overpressure
- Joint separation and gasket failure
- Pump casing and impeller damage
- Recurring water hammer events
- Premature fatigue of pipeline components
Proper selection balances opening speed, discharge capacity, and closing characteristics to reduce primary and secondary surges.
Functional Benefits of Surge Anticipator Valves
- Limits peak surge pressures near pump discharge
- Reduces water hammer and transient loading
- Protects pipelines, joints, and mechanical equipment
- Improves operational safety of pumping stations
- Extends service life of the network under repeated events
Selection Criteria for Surge Anticipator Valve Applications
Correct selection depends on the hydraulic characteristics of the pumping system and the expected transient conditions. Engineers typically evaluate:
- Pump head and discharge pressure
- Pipeline length, diameter, and profile
- Location of high-risk surge zones
- Expected surge magnitude and event frequency
- Available discharge routing and capacity
- Required response time and closing behaviour
Improper sizing or unsuitable discharge routing can result in delayed opening or inadequate pressure relief.
Materials and Grades Used in Surge Anticipator Valves
Material selection focuses on pressure containment strength, fatigue resistance, and corrosion protection under repeated transient loading.
| Material | Grade | Standard | Typical Applications |
|---|---|---|---|
| Carbon Steel | WCB | ASTM A216 | High-pressure water transmission lines |
| Low Temperature Carbon Steel | LCB, LCC | ASTM A352 | Cold climate and low-temperature pumping |
| Alloy Steel | F11, F22 | ASTM A182 | High-pressure and high-temperature systems |
| Stainless Steel | CF8, CF8M | ASTM A351 | Corrosive water and chemical pipelines |
| Stainless Steel | F316, F316L | ASTM A182 | Aggressive water and coastal networks |
| Duplex Stainless Steel | F51 (2205) | ASTM A182 | Chloride-rich and high-strength service |
| Super Duplex Stainless Steel | F53, F55 (2507) | ASTM A182 | Severe corrosion and offshore pipelines |
| Nickel Alloys | Inconel 625, Monel 400 | ASTM B564 | Special chemical and corrosive service |
Industries Using Surge Anticipator Valves
- Water transmission systems – long pumping mains and trunk pipelines
- Irrigation pumping networks – rising mains and canal lifting stations
- Power plants – cooling water pumping and condenser circuits
- Desalination plants – intake and transfer pipelines
- Industrial utilities – high-head process pumping systems
- Municipal pumping stations – raw and treated water networks
Design and Performance Requirements
Surge anticipator valves are designed primarily around transient response performance rather than steady-flow control. Design validation focuses on:
- Pilot sensing accuracy and response time
- Opening speed under rapid pressure rise
- Discharge capacity during surge events
- Controlled closing to avoid secondary surges
- Structural integrity under repeated transient loading
Engineering Support for Surge Anticipator Valve Selection
ValvesOnly works with hydraulic designers and pumping system teams to review pipeline profile, pump operating conditions, and expected transient scenarios before final valve selection.
Sharing pump head, discharge pressure, pipeline length, flow rate, and available discharge routing helps align valve sizing and pilot setup to the actual surge behaviour of the system.
