Hastelloy C276/B3 3 Piece Ball Valve
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by valvesonly.com
- Pick up at a valvesonly.com collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
Hastelloy C276/B3 3 Piece Ball Valve
Body: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Bonnet: Hastelloy C276, Hastelloy G30, Hastelloy B, Hastelloy C22, Hastelloy C4
Seat: PTFE, RPTFE, PPL
Seal: PTFE, RPTFE, PPL
Nominal Size: 2″ to 8″
Nominal Pressure: PN1.0 to 10MPa, Class150 to Class600
Design and Manufacture Standard: API 6D, API 600
Face to Face Dimension: ANSI B16.10, ASME B16.10
Flange End Dimension: ANSI B16.5, ASME B16.5, DIN, JIS
Inspection and Test: API 598, API 6D
Dimensions
Size | L | D | D1 | D2 | H | b-f | z x Φd |
15 | 130 | 95 | 65 | 45 | 99.2 | 16-2 | 4-Φ14 |
20 | 140 | 105 | 75 | 55 | 100 | 16-2 | 4-Φ14 |
25 | 150 | 115 | 85 | 65 | 115 | 16-2 | 4-Φ14 |
32 | 165 | 135 | 100 | 78 | 1169 | 18-2 | 4-Φ18 |
40 | 180 | 145 | 110 | 85 | 133 | 18-3 | 4-Φ18 |
50 | 200 | 160 | 125 | 100 | 140 | 20-2 | 4-Φ18 |
65 | 220 | 180 | 145 | 120 | 155 | 22-2 | 4-Φ18 |
80 | 241 | 195 | 160 | 135 | 182 | 22-2 | 8-Φ18 |
100 | 280 | 215 | 180 | 155 | 208 | 20-2 | 8-Φ18 |
125 | 320 | 245 | 210 | 185 | 249 | 22-2 | 8-Φ18 |
150 | 360 | 280 | 240 | 210 | 277 | 24-2 | 8-Φ23 |
200 | 400 | 335 | 295 | 265 | 328 | 26-2 | 12-Φ23 |
250 | 533 | 405 | 355 | 320 | 350 | 30-2 | 12-Φ25 |
Additional information
| Body Material | Hastelloy C276 |
|---|---|
| Class | 150 |
| Size | 1", 2", 4" |
Related products

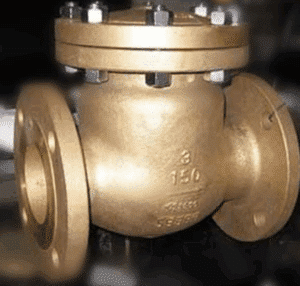

Aluminium Bronze Swing Check Valve
