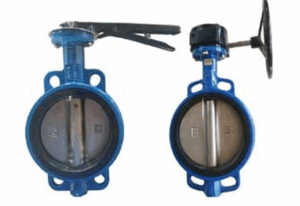

Lug Butterfly Valve

$18.00 – $6,461.00
Add to wishlist
In Stock
Custom Enquiry
  • Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
  • Including shipping costs, sent by valvesonly.com
  • Pick up at a valvesonly.com collection point is possible
  • 30 days to change your mind and free returns
  • Day and night customer service
SKU: N/A
Categories: ,

Description

Lug Butterfly Valve

1. Body: Carbon Steel, Cast Iron, Ductile Iron

2. Bushing: PTFE

3. Seat: EPDM, NBR, PTFE

4. Stem: SS410, SS420, SS416, SS304, SS316, Monel

5. Disc: Aluminium Bronze, Carbon Steel, Cast Iron, Ductile Iron, SS304, SS316

6. Pin: SS304

7. O-Ring: NBR

8. Seat Lining: EPDM, NBR, Viton, PTFE

9. Packing: Graphite, PTFE

10. Handle: Aluminium, Cast Iron

Nominal Diameter: DN40 to DN300

Nominal Pressure: PN10 to PN40, Class150

End Connections: Lug

Operation: Lever Operated, Gear Operated, Electric Actuated, Pneumatic Actuated

Design and Manufacture: API609

Face to Face Dimension: API609, MSS SP-67, MSS SP-68, BS EN1092

End Connection Standard: ASME B16.5, DIN2501

Inspection and Test: API598

Dimension                                                                                              Unit: mm

PN10

DN A B C L фK N-M
40 70 164 32 33 110 4-M16
50 80 169 32 43 125 4-M16
65 89 176 32 46 145 4-M16
80 95 183 32 46 160 8-M16
100 114 201 32 52 180 8-M16
125 127 214 32 56 210 8-M16
150 139 229 32 56 240 8-M20
200 175 257 45 60 295 8-M20
250 203 280 45 68 350 12-M20
300 242 327 45 78 400 12-M20

Additional information

Body Material

Carbon Steel, Cast iron, Ductile Iron
Class

150/PN16
Disc

Carbon Steel, Cast Iron, Ductile Iron, SS304, SS316
Size

1 1/2", 10", 12", 14", 16", 18", 2 1/2", 2", 20", 22", 24", 28", 3", 32", 4", 5", 6", 8"
